Rattling Under the Car at Startup: Heat Shield, Converter or Hanger?

Reviewed 2026-10-03. Checked against the sources listed below. This is general information, not a substitute for a mechanic's inspection.

Quick answer

Most rattles under the car come from one of three places: a loose heat shield, a broken catalytic converter core, or a worn exhaust hanger or clamp. A heat shield rattle is usually a tinny buzz at certain engine speeds. A broken converter core sounds like loose stones inside the converter and often comes with a check engine light or a loss of power. Only work under a car that is cold and safely supported.

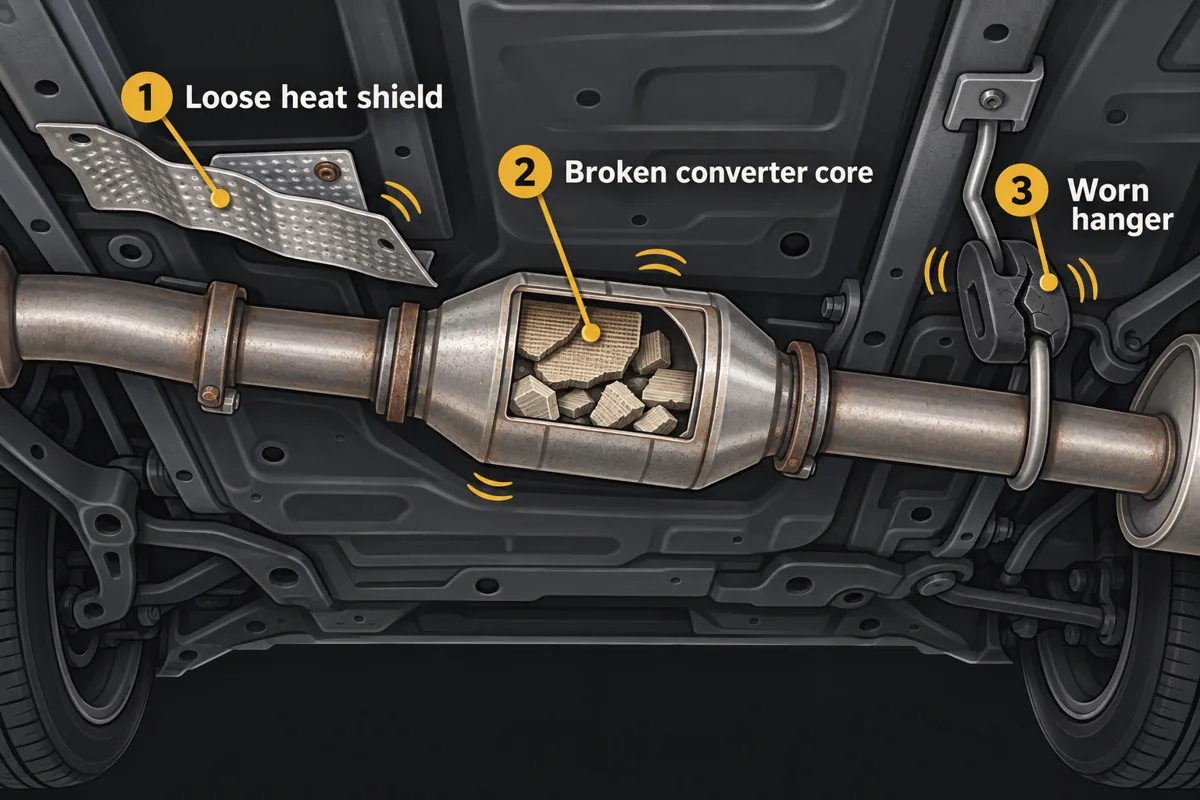

Underside of a car showing the three common rattle sources: a loose heat shield, a broken converter core and a worn exhaust hanger

The three usual suspects

Cause	What it sounds like	Other clues
Loose heat shield	Tinny buzz or rattle, often only at certain rpm or when slowing down	Rust around the spot welds; shield moves by hand
Broken converter core	Loose rocks or gravel inside the converter	P0420 or P0430, weak acceleration, rotten egg smell
Worn hanger or loose clamp	Clunk or knock over bumps, at startup or shutdown	Exhaust hangs low or touches the body

Heat shields

Heat shields are thin metal covers held on by small spot welds. Rust weakens those welds, and once a shield comes loose it vibrates against the pipe. The noise can be loudest at one engine speed, when the exhaust vibrates at its natural frequency. A loose shield can often be secured with a clamp instead of replacing the whole part.

A broken converter core

Inside a catalytic converter is a ceramic honeycomb, called the substrate. Heat damage from misfires or a rich fuel mixture, or a hard hit from road debris, can crack it. When the engine is off and cold, a technician can tap the converter shell with a rubber mallet and listen for loose pieces inside. Loose pieces can also block exhaust flow, which causes power loss.

A broken core will not fix itself. If the converter rattles inside, plan to replace it, and find out why it broke so the new one is not damaged the same way.

Hangers and clamps

Rubber hangers hold the exhaust in place and let it move a little. When they crack or stretch, the pipe can knock against the body, especially when the engine starts, shuts off or goes over bumps.

A simple order to check

With the engine cold and off and the car safely on ramps or jack stands, push on each heat shield by hand. Any that move or buzz are suspects.
Gently move the exhaust by hand at each hanger. A pipe that drops or swings freely points to a hanger.
Have the converter tapped with a rubber mallet. Rattling inside means the core is damaged.
Scan for codes. P0420 or P0430 together with a rattle makes a broken converter more likely.
